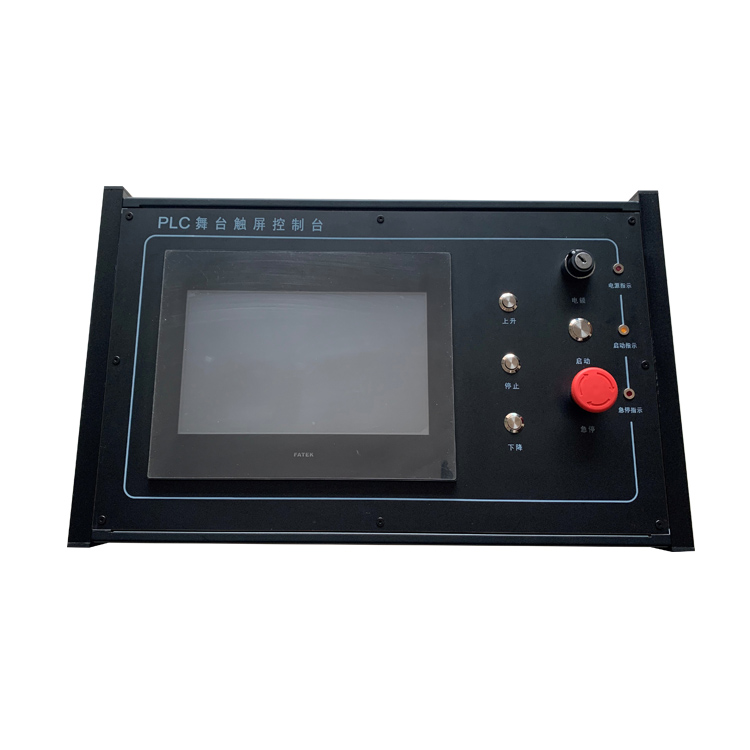

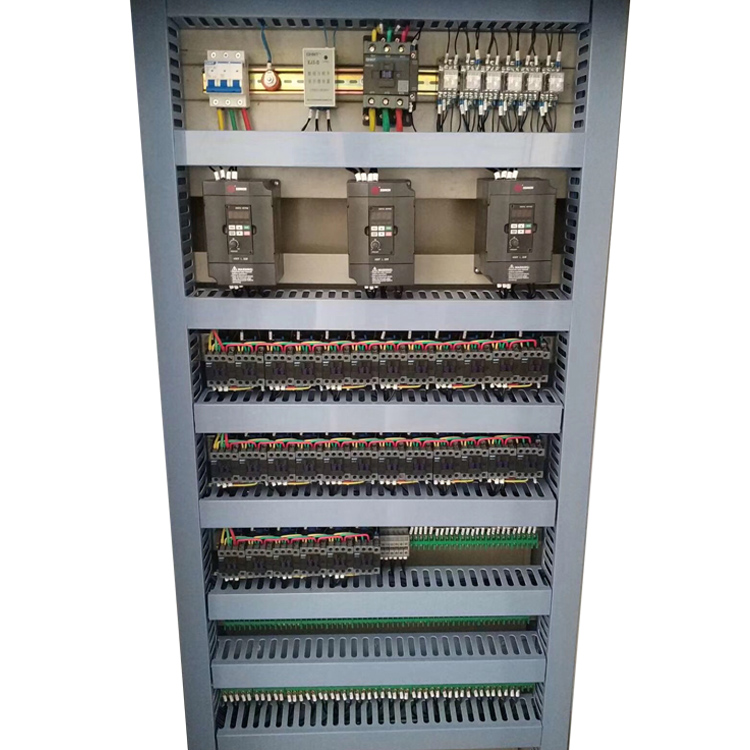

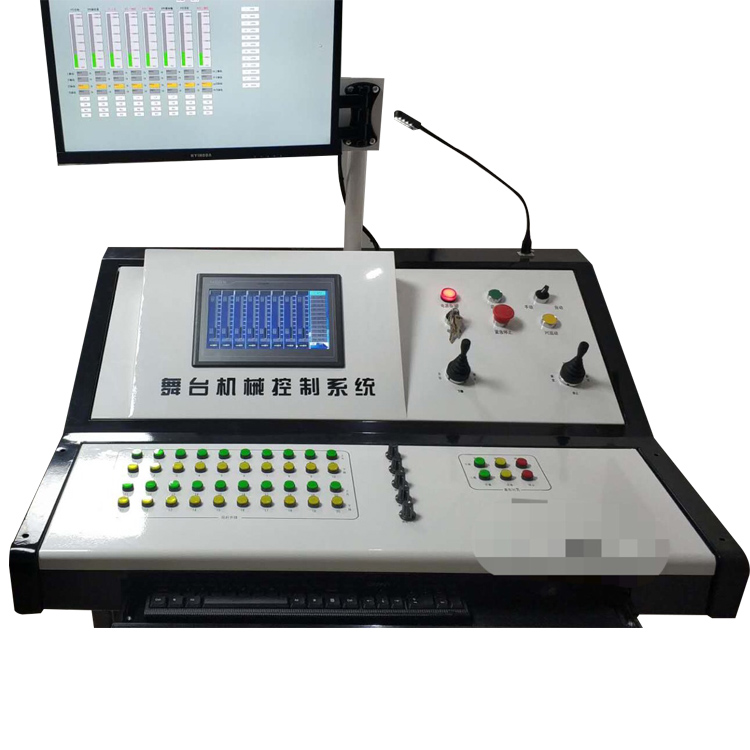

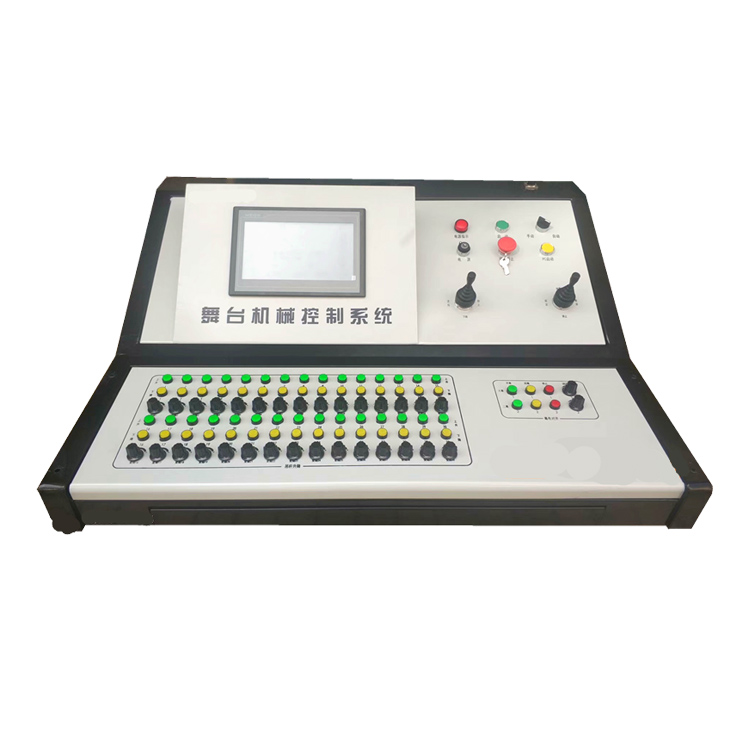

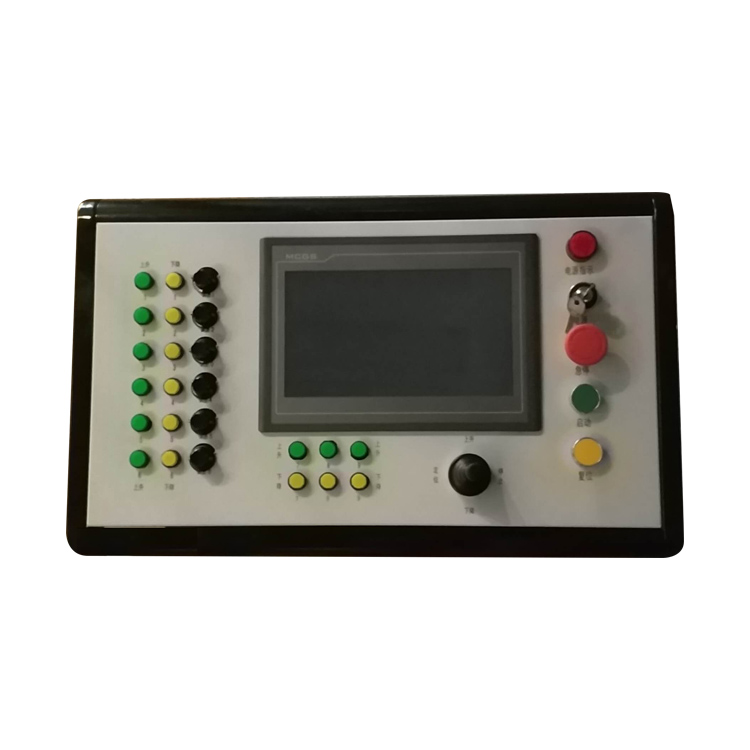

The technical feature of the stage boom control system is that our company has summarized years of experience in producing boom control systems, and has recently developed a more powerful digital stage mechanical control system. An interface for variable frequency speed controller can be added to achieve soft start and soft stop of the suspension rod, allowing for arbitrary lifting speed during the operation of the suspension rod. The high-precision and stable operation of the suspension rod has been achieved. The system consists of a computer control panel, a PLC interface box, and a high-voltage control cabinet. A 485 cable connection is used between the computer console and the relay box to facilitate device installation and use. This system uses a photoelectric encoder as the suspension rod position sensor, combined with computer digital control technology, and is suitable for various stage lifting equipment. Installation and debugging are simple and convenient. Compared to the positioning system using multi turn potentiometers, it has stronger anti-interference and noise prevention performance, and higher control accuracy. Due to the use of advanced computer digital control technology, the response speed and control accuracy of the suspension rod control system have been greatly improved, achieving fixed-point control of the electric lifting suspension rod. By using this system, the zero position, lower limit, upper limit, positioning position and other parameters of each suspension rod can be set arbitrarily, and the centralized control of any number of suspension rods in the suspension rod system and the control of pre-set scenes can be controlled. The PLC digital stage boom control console uses an imported touch screen and a fully Chinese operating interface, displaying the current working status and the current position of each boom, making the boom control system clear and simple to control and operate. Due to the use of advanced digital control technology, the control system can automatically adjust and correct the operating accuracy of the crane, offsetting the image of the crane pulley. Improve the operational accuracy of the system. This device has a small footprint, full functionality, and a universal operating interface, making the configuration of the boom control system simple, quick field changes, and strong operational reliability. In terms of safety assurance, in addition to setting upper and lower limits on the computer console, the system also provides interfaces for other secondary safety measures, such as electromagnetic braking, top protection switches, and mechanical upper and lower limits of the crane, to increase the safety factor of the system. Especially suitable for use in various types of theaters. Main functional features: Large screen touch screen display, Chinese character operation interface· Real time display of the current position of the suspension rod· Display the positioning position of the suspension rod· Display the current position status of the suspension rod (whether it is the upper limit, lower limit, or positioning position)· The zero position, lower limit position, and upper limit position of the suspension rod can be set at any position of the suspension rod stroke· A positioning position can be set at any position between the upper and lower limits of the suspension rod· Control one or more suspension rods while lifting, lowering, and stopping· Control one or more suspension rods to rise or fall, and automatically stop when running to the upper limit, lower limit, or positioning position· Cooperate with a frequency converter to control the operating speed of the suspension rod, as well as the soft start and soft stop of the suspension rod· At most, the number of control rods can be selected simultaneously: 99. Multiple scene positioning storage can be set· In each scene preset, the positioning positions of 8 suspension rods can be set· You can perform and change scenes in any scene order, and control the boom to run to the set position· Control the number of channels for electric positioning suspension rods: 8-99· Repetitive positioning accuracy: ± 2mm digital mobile control console (iPad) digital handheld boom controller, suitable for large, medium and small TV broadcast halls, studios, unit auditoriums, etc
